Description
Pure V

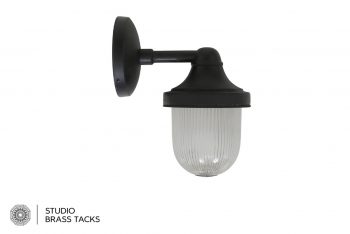

Pure V is a blend of modern and industrial styling, which brings this fixture right into the modern-day interior lighting trend against rugged exterior styling. The design gives a diffused ambient light through a cylindrical glass shade. The direct glare of the LED lamp is cut off with the help of ribbed glass structure.
Pure V is available in two sizes and have options of using various mounting brackets to suit different decors.
Additional information
| Area | |
|---|---|
| Mounting | |
| Size | |
| Lamp | |
| Finish | |
| Wattage |
Finishes
Lamp Options
| lamp base | image | dia (mm) | length (mm) | watt (W) | lumen (lm) | CT (K) | CRI | lamp life (hrs) | beam (deg) |
| GU10 | A | 51 | 55 | 5.5 | 350 | 2700K | >90 | 25000 | 36 |
| GU10 | A | 51 | 55 | 5.5 | 350 | 4000K | >90 | 25000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 60 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 60 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 6500K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 6500K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 2700K | >80 | 15000 | 36 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 3000K | >80 | 15000 | 36 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 4000K | >80 | 15000 | 36 |
| E14 | B | 45 | 111 | 5 | 470 | 2700K | >80 | 15000 | 300 |
| E14 | B | 45 | 78 | 5 | 470 | 4000K | >80 | 15000 | 300 |
| E14 | C | 50 | 85 | 5.5 | 350 | 2700K | >90 | 25000 | 36 |
| E14 | D | 45 | 78 | 6.5 | 806 | 2700K | >80 | 15000 | 300 |
| E14 | D | 45 | 78 | 6.5 | 806 | 4000K | >80 | 15000 | 300 |
| E14 | E | 20 | 101 | 7.5 | 806 | 2700 | >80 | 25000 | 320 |
| E14 | F | 40.4 | 114 | 8 | 806 | 2700K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 8 | 806 | 4000K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 2700K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 4000K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 6500K | >80 | 15000 | 300 |
| E27 | G | 32 | 185 | 5 | 400 | 2000K | >80 | 15000 | 360 |
| E27 | H | 70 | 105 | 10 | 1521 | 2700K | >80 | 15000 | 300 |
| E27 | H | 70 | 105 | 10 | 1521 | 4000K | >80 | 15000 | 300 |
| E27 | I | 95 | 91 | 10 | 630 | 2700K | >90 | 25000 | 36 |
| E27 | J | 122 | 134 | 13 | 1035 | 2700K | >80 | 25000 | 15 |
| E27 | J | 122 | 134 | 13 | 1035 | 2700K | >80 | 25000 | 30 |
| E27 | K | 60 | 118 | 13 | 1521 | 2700K | >80 | 15000 | 300 |
| E27 | K | 60 | 118 | 13 | 1521 | 4000K | >80 | 15000 | 300 |
| E27 | K | 60 | 118 | 13 | 1521 | 6500K | >80 | 15000 | 300 |
| E27 | L | 70 | 126 | 16 | 2500 | 2700K | >80 | 15000 | 300 |
| E27 | L | 70 | 126 | 16 | 2500 | 4000K | >80 | 15000 | 300 |
| E27 | M | 76 | 168 | 22 | 2700 | 2700K | >80 | 50000 | 360 |
| E27 | M | 76 | 168 | 22 | 3000 | 4000K | >80 | 50000 | 360 |
Mounting Options
Standard Articles
| Area | Mounting | Size | Finish | Lamp | Wattage | Article Reference |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 1 (01) | Antique Brass (AB) | LED lamp (E014) | 07 | 325-IND-W03-01-AB-E014-07 |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 1 (01) | Antique Silver (AS) | LED lamp (E014) | 07 | 325-IND-W03-01-AS-E014-07 |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 1 (01) | Burnt Black (BB) | LED lamp (E014) | 07 | 325-IND-W03-01-BB-E014-07 |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 2 (02) | Antique Brass (AB) | LED lamp (E014) | 07 | 325-IND-W03-02-AB-E014-07 |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 2 (02) | Antique Silver (AS) | LED lamp (E014) | 07 | 325-IND-W03-02-AS-E014-07 |
| Indoor (IND) | Wall Mount straight arm (W03) | Size 2 (02) | Burnt Black (BB) | LED lamp (E014) | 07 | 325-IND-W03-02-BB-E014-07 |
