Description
Iconic V

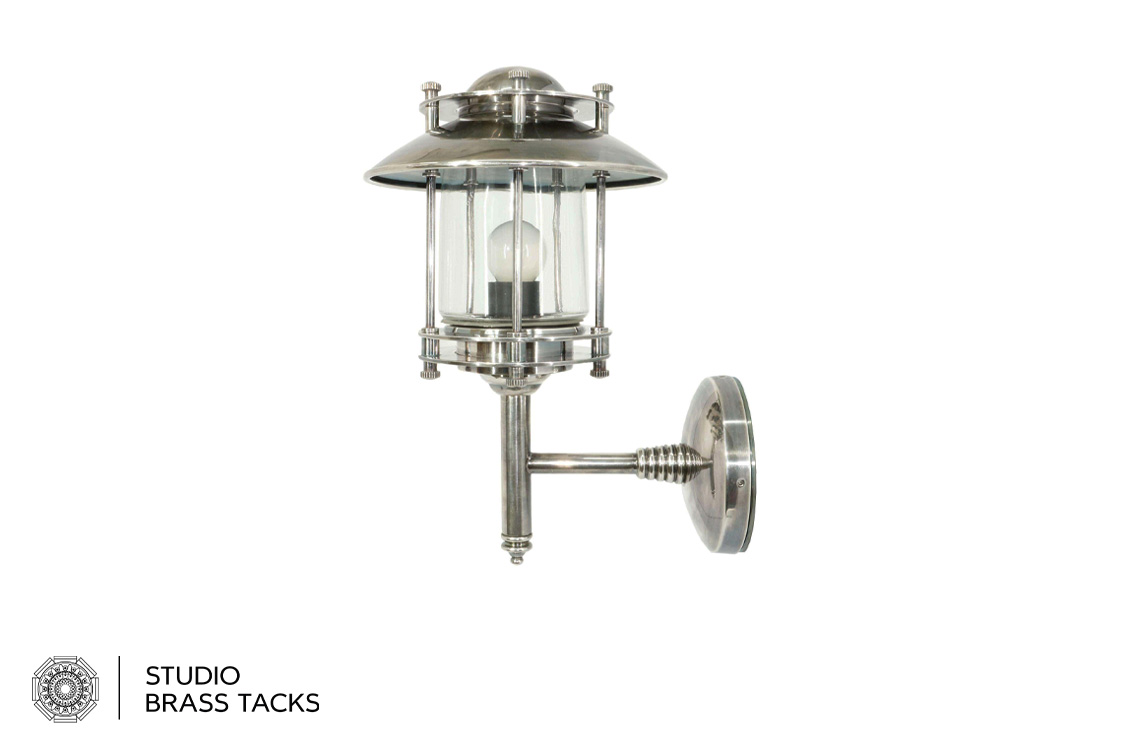

Iconic V is Scandinavian inspired design with a dome joined to the shade and the body with five vertical rods. The wall mounted fixture is made of brass and is available in multiple finishes and different mounting arms to suit a range of decors.
A LED lamp is placed at the center of the cylindrical clear glass. The lamp can be chosen to be simple or a more decorative option for a grandeur visual appeal.
Additional information
| Area | |
|---|---|
| Mounting | |
| Size | |
| Lamp | |
| Finish | |
| Wattage |
Finishes
Lamp Options
| lamp base | image | dia (mm) | length (mm) | watt (W) | lumen (lm) | CT (K) | CRI | lamp life (hrs) | beam (deg) |
| GU10 | A | 51 | 55 | 5.5 | 350 | 2700K | >90 | 25000 | 36 |
| GU10 | A | 51 | 55 | 5.5 | 350 | 4000K | >90 | 25000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 60 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 3000K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 60 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 4000K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 6500K | >80 | 10000 | 36 |
| GU10 | A | 51 | 55 | 6.9 | 575 | 6500K | >80 | 10000 | 120 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 2700K | >80 | 15000 | 36 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 3000K | >80 | 15000 | 36 |
| GU10 | A | 51 | 55 | 9.6 | 750 | 4000K | >80 | 15000 | 36 |
| E14 | B | 45 | 111 | 5 | 470 | 2700K | >80 | 15000 | 300 |
| E14 | B | 45 | 78 | 5 | 470 | 4000K | >80 | 15000 | 300 |
| E14 | C | 50 | 85 | 5.5 | 350 | 2700K | >90 | 25000 | 36 |
| E14 | D | 45 | 78 | 6.5 | 806 | 2700K | >80 | 15000 | 300 |
| E14 | D | 45 | 78 | 6.5 | 806 | 4000K | >80 | 15000 | 300 |
| E14 | E | 20 | 101 | 7.5 | 806 | 2700 | >80 | 25000 | 320 |
| E14 | F | 40.4 | 114 | 8 | 806 | 2700K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 8 | 806 | 4000K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 2700K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 4000K | >80 | 15000 | 300 |
| E14 | F | 40.4 | 114 | 10 | 1050 | 6500K | >80 | 15000 | 300 |
| E27 | G | 32 | 185 | 5 | 400 | 2000K | >80 | 15000 | 360 |
| E27 | H | 70 | 105 | 10 | 1521 | 2700K | >80 | 15000 | 300 |
| E27 | H | 70 | 105 | 10 | 1521 | 4000K | >80 | 15000 | 300 |
| E27 | I | 95 | 91 | 10 | 630 | 2700K | >90 | 25000 | 36 |
| E27 | J | 122 | 134 | 13 | 1035 | 2700K | >80 | 25000 | 15 |
| E27 | J | 122 | 134 | 13 | 1035 | 2700K | >80 | 25000 | 30 |
| E27 | K | 60 | 118 | 13 | 1521 | 2700K | >80 | 15000 | 300 |
| E27 | K | 60 | 118 | 13 | 1521 | 4000K | >80 | 15000 | 300 |
| E27 | K | 60 | 118 | 13 | 1521 | 6500K | >80 | 15000 | 300 |
| E27 | L | 70 | 126 | 16 | 2500 | 2700K | >80 | 15000 | 300 |
| E27 | L | 70 | 126 | 16 | 2500 | 4000K | >80 | 15000 | 300 |
| E27 | M | 76 | 168 | 22 | 2700 | 2700K | >80 | 50000 | 360 |
| E27 | M | 76 | 168 | 22 | 3000 | 4000K | >80 | 50000 | 360 |
Mounting Options
Standard Articles
| Mounting | Size | Finish | Lamp | Wattage | Article Reference |
| Wall Mount T bracket (W23) | Size 2 (02) | Antique Brass (AB) | LED lamp (E014) | 07 | 505-OUT-W23-02-AB-E014-07 |
| Wall Mount T bracket (W23) | Size 2 (02) | Antique Silver (AS) | LED lamp (E014) | 07 | 505-OUT-W23-02-AS-E014-07 |
| Wall Mount T bracket (W23) | Size 2 (02) | Burnt Black (BB) | LED lamp (E014) | 07 | 505-OUT-W23-02-BB-E014-07 |
| Wall Mount T bracket (W23) | Size 3 (03) | Antique Brass (AB) | LED lamp (E014) | 10 | 505-OUT-W23-03-AB-E014-10 |
| Wall Mount T bracket (W23) | Size 3 (03) | Antique Silver (AS) | LED lamp (E014) | 10 | 505-OUT-W23-03-AS-E014-10 |
| Wall Mount T bracket (W23) | Size 3 (03) | Burnt Black (BB) | LED lamp (E014) | 10 | 505-OUT-W23-03-BB-E014-10 |
